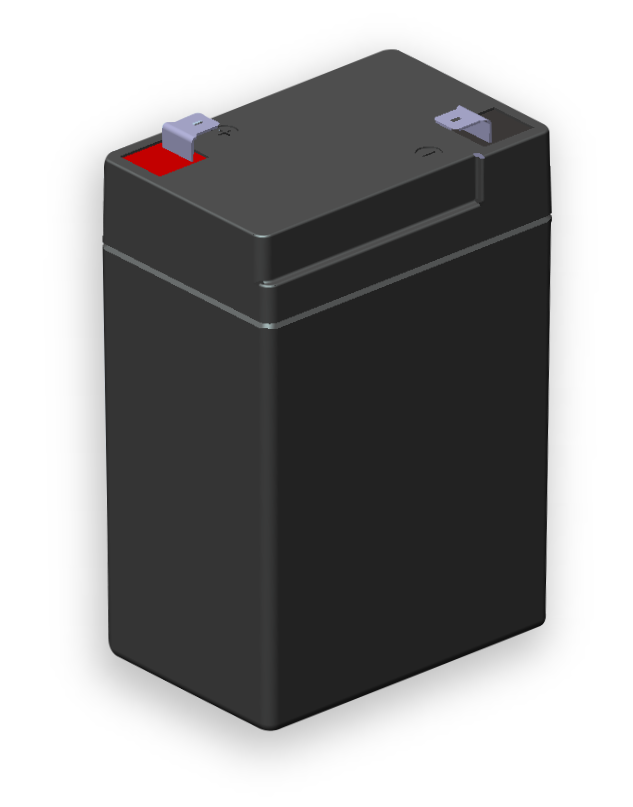

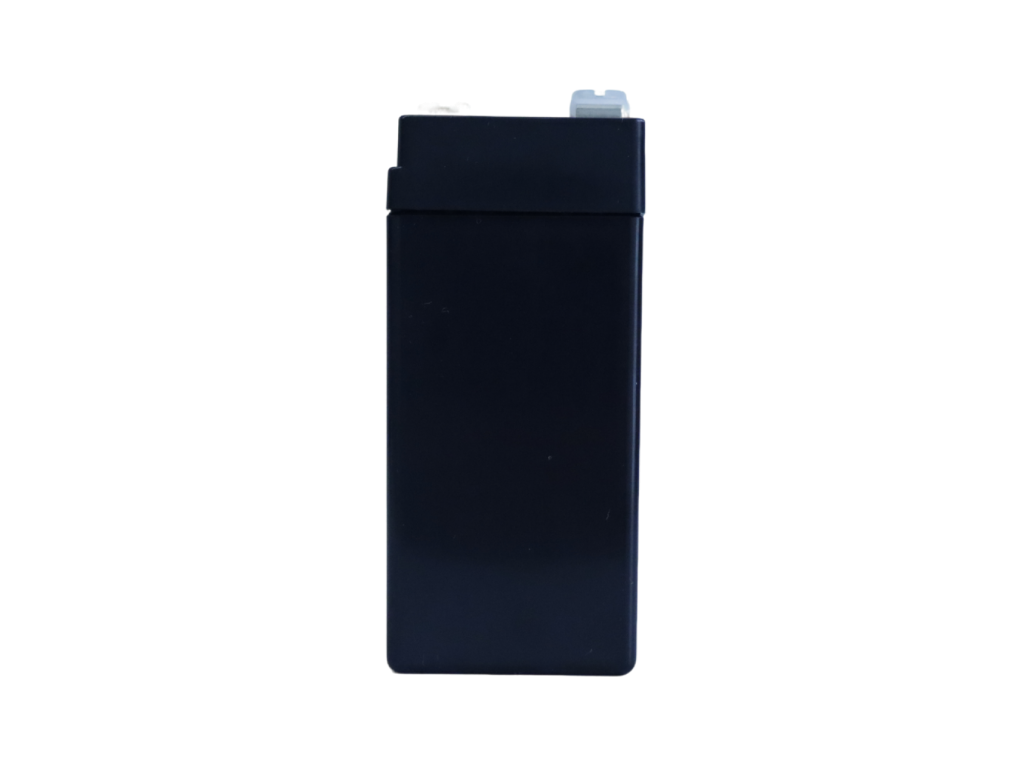

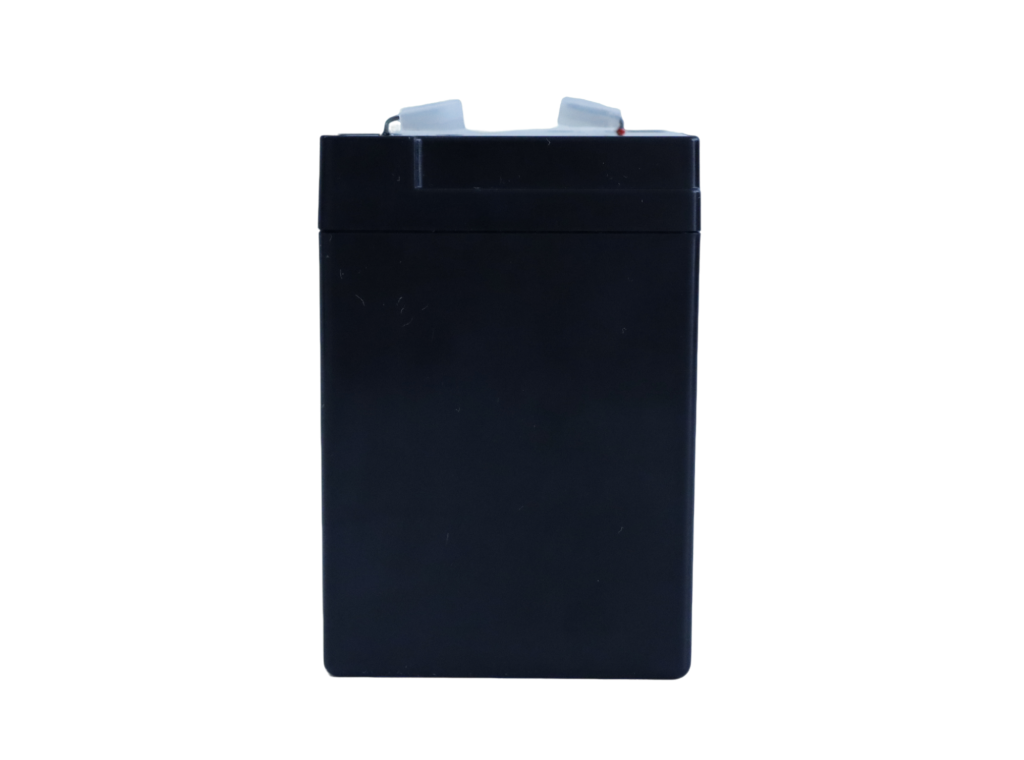

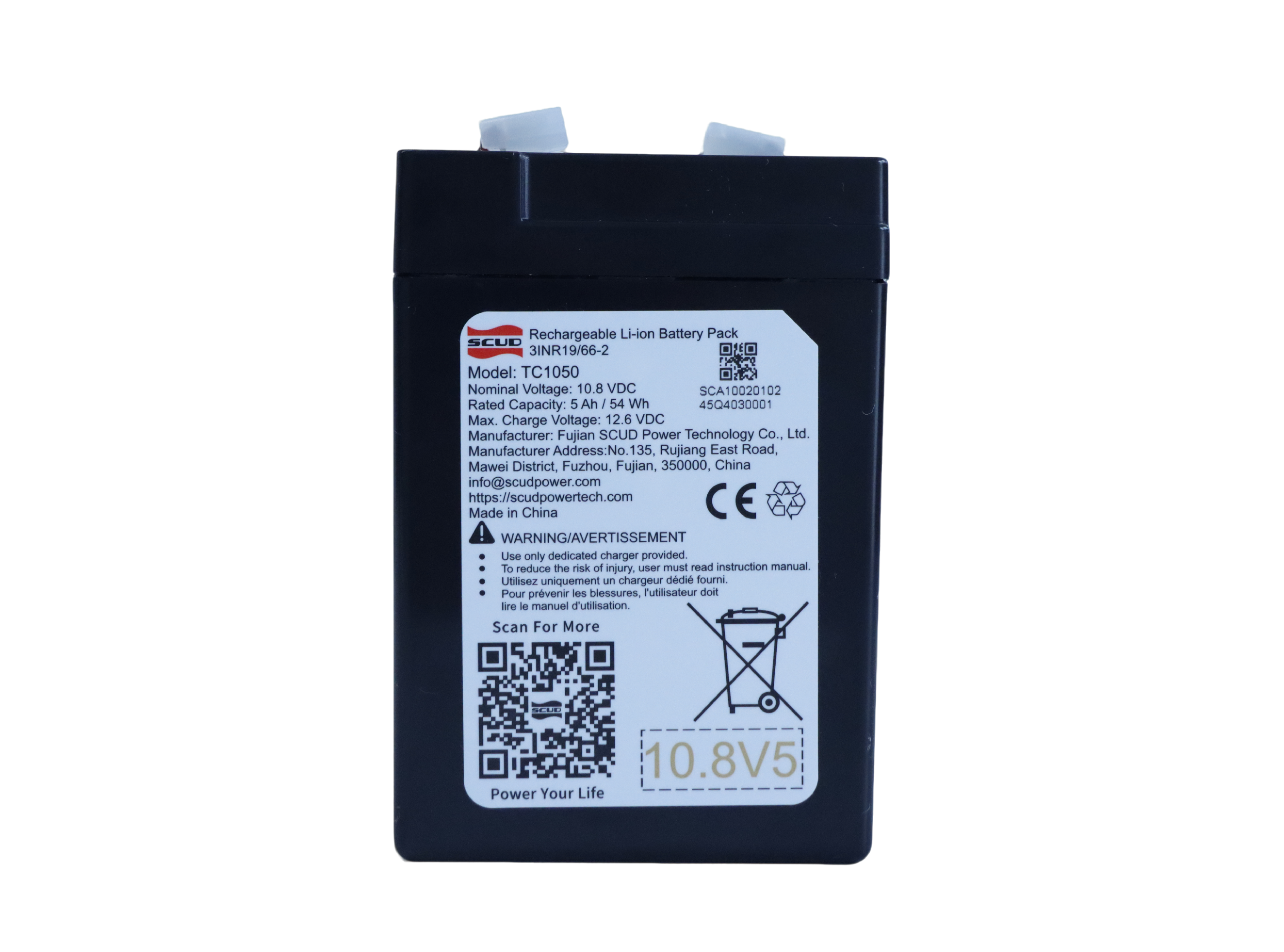

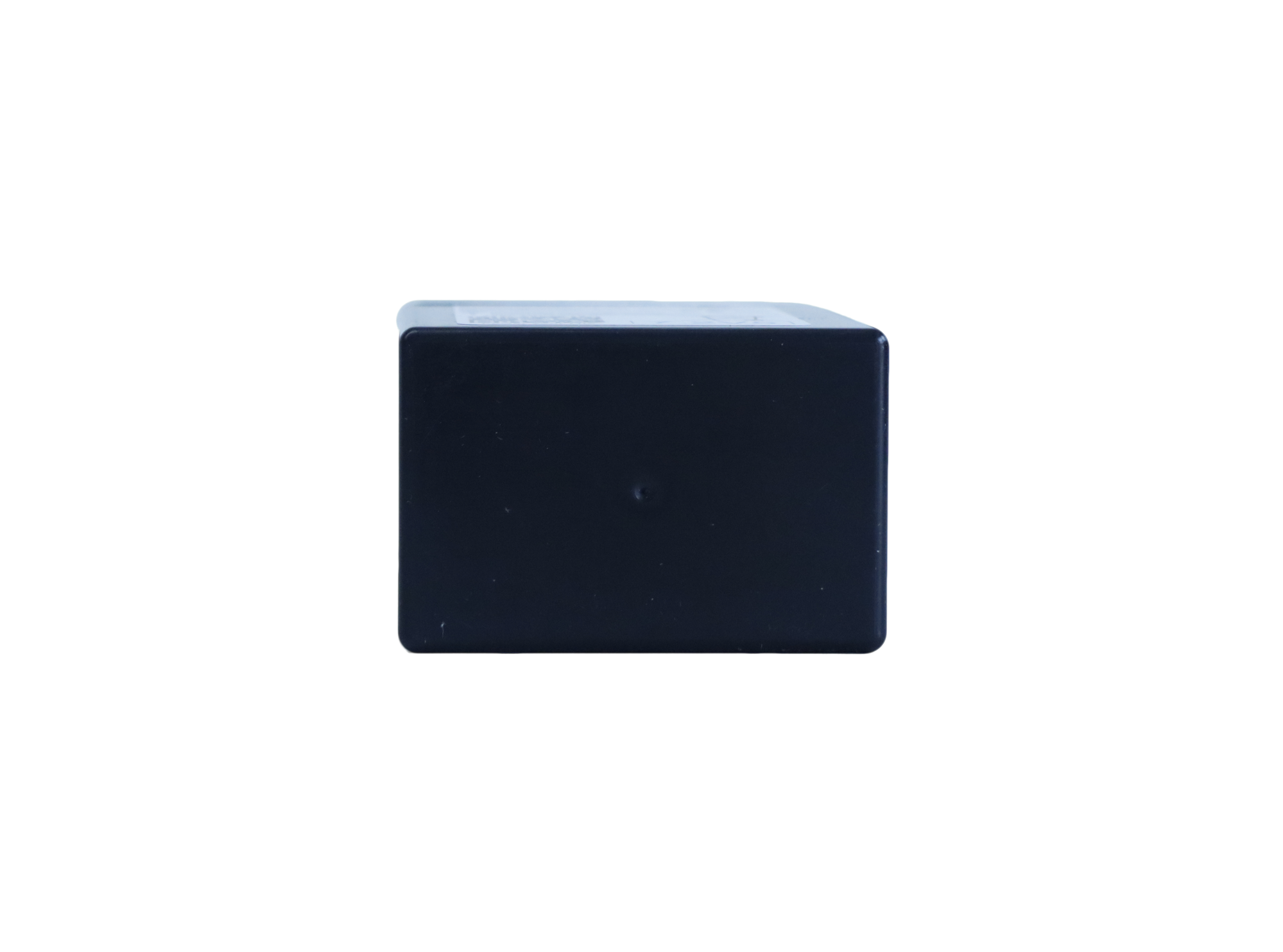

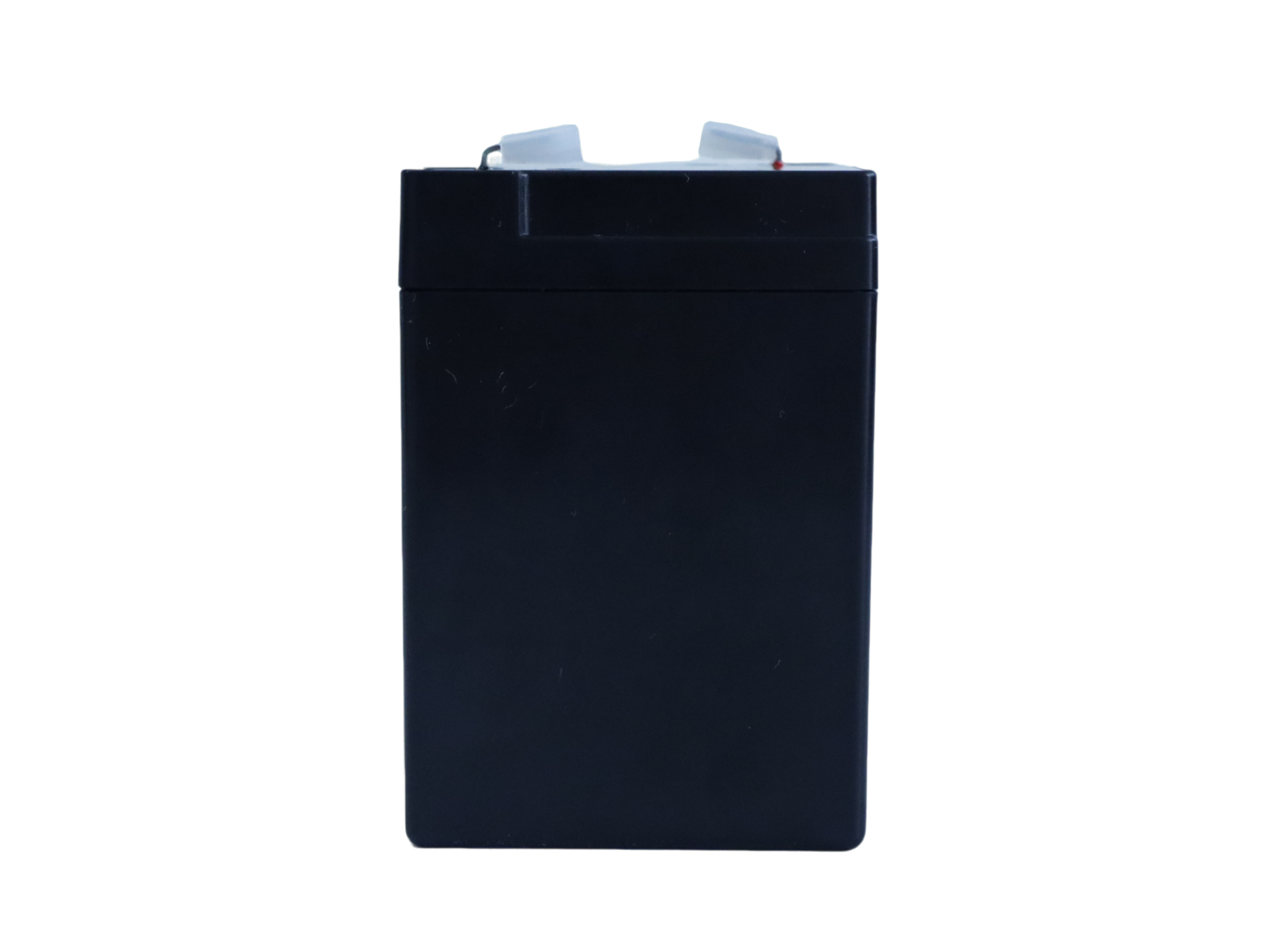

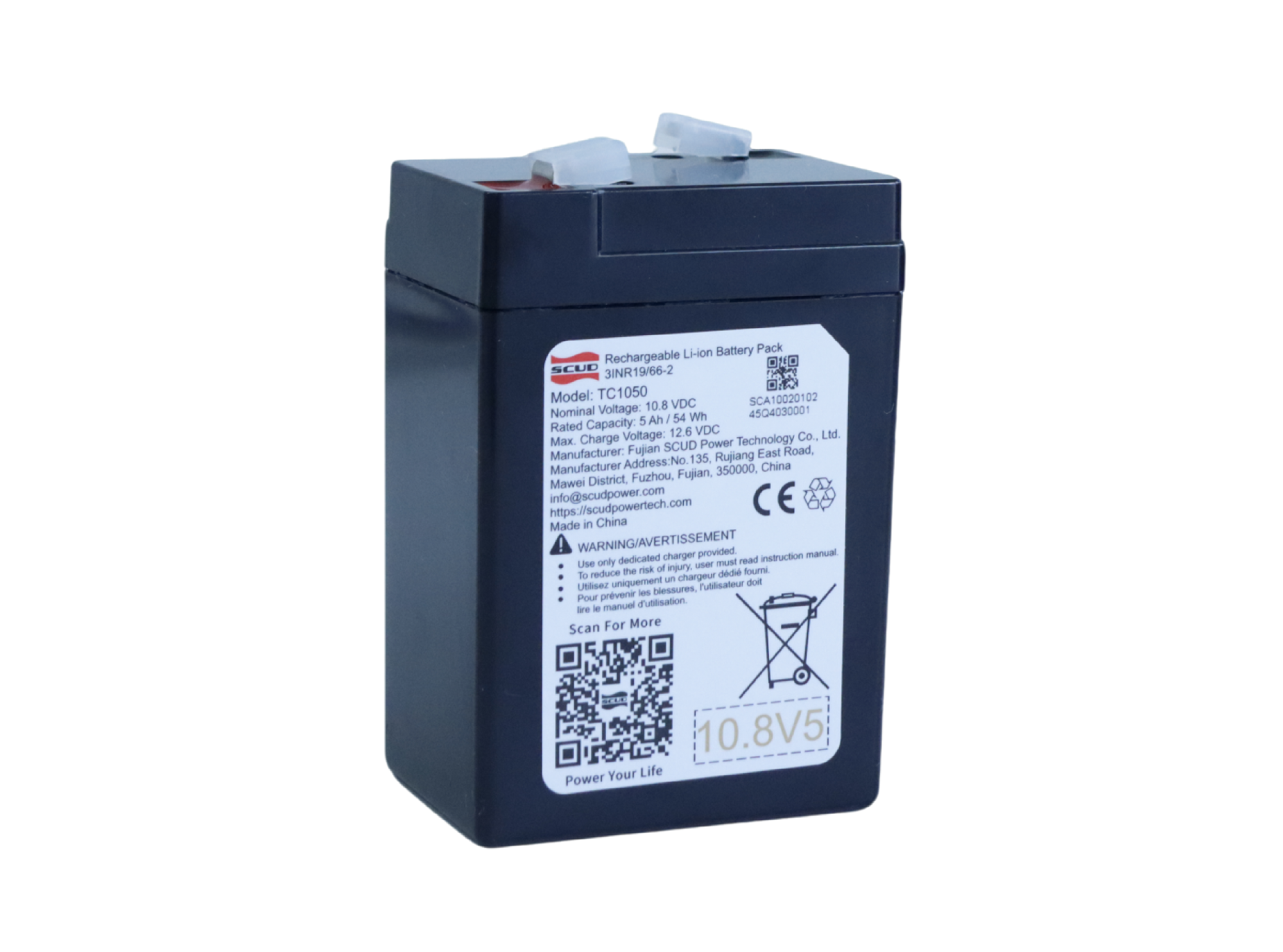

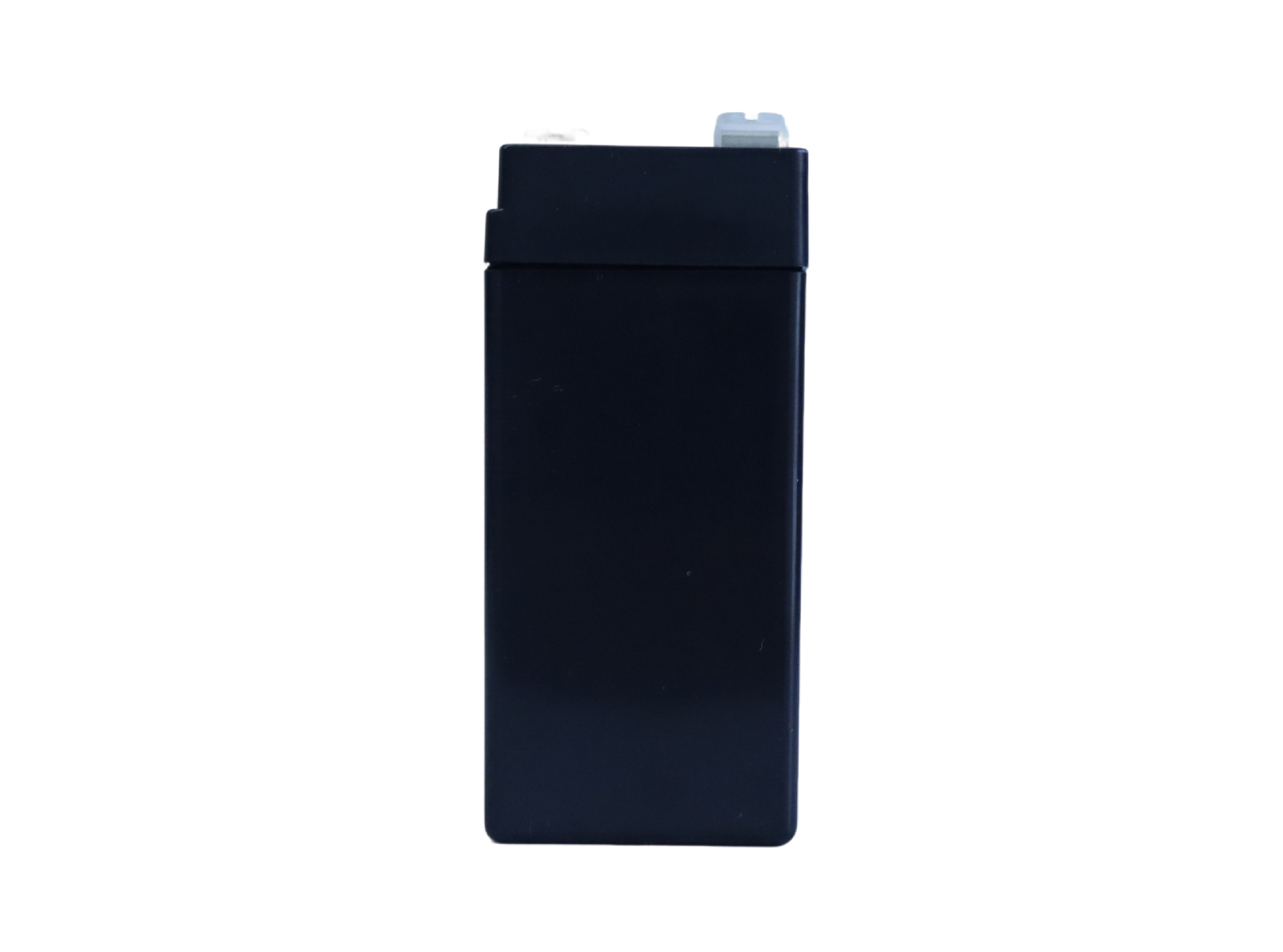

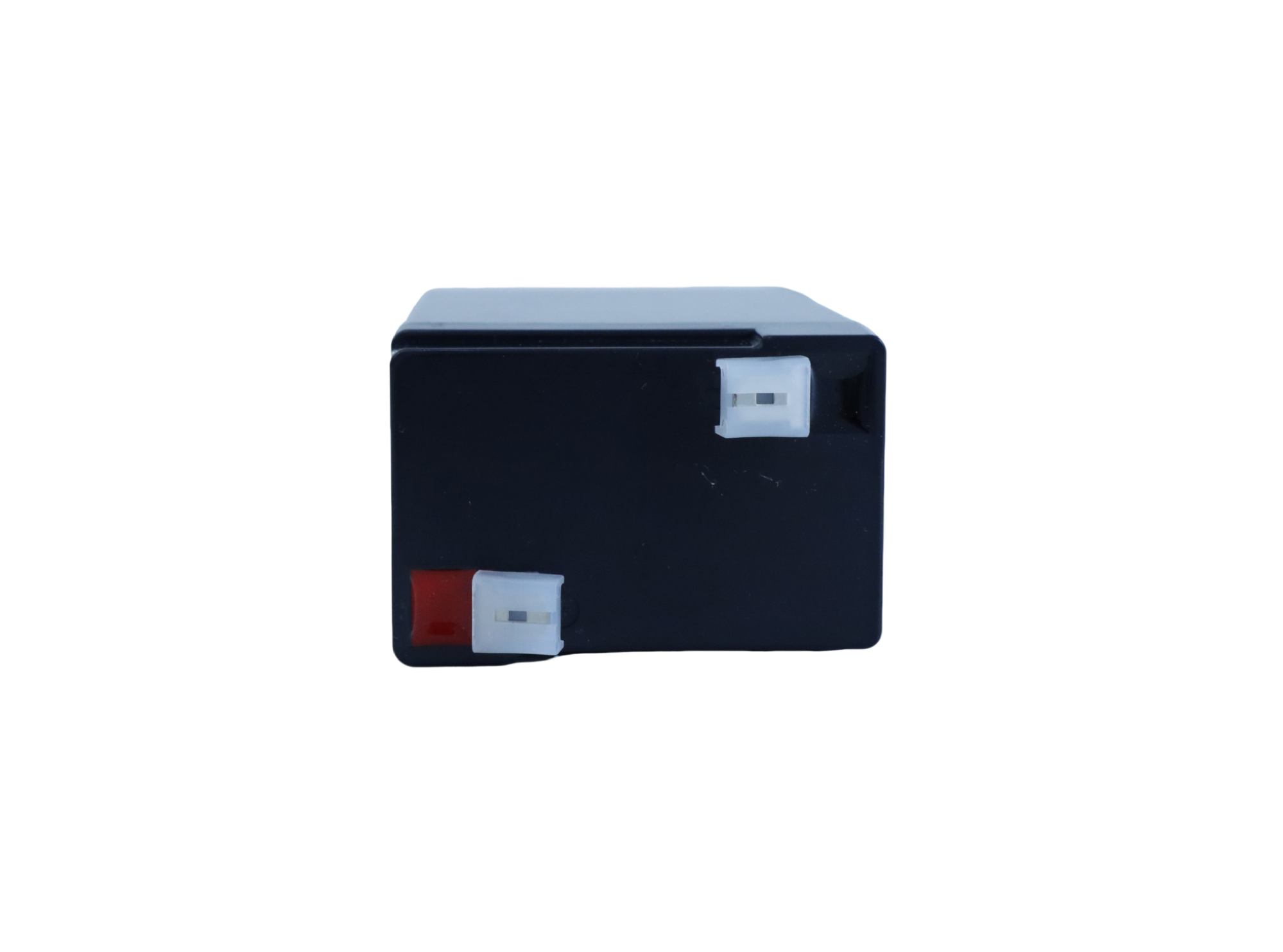

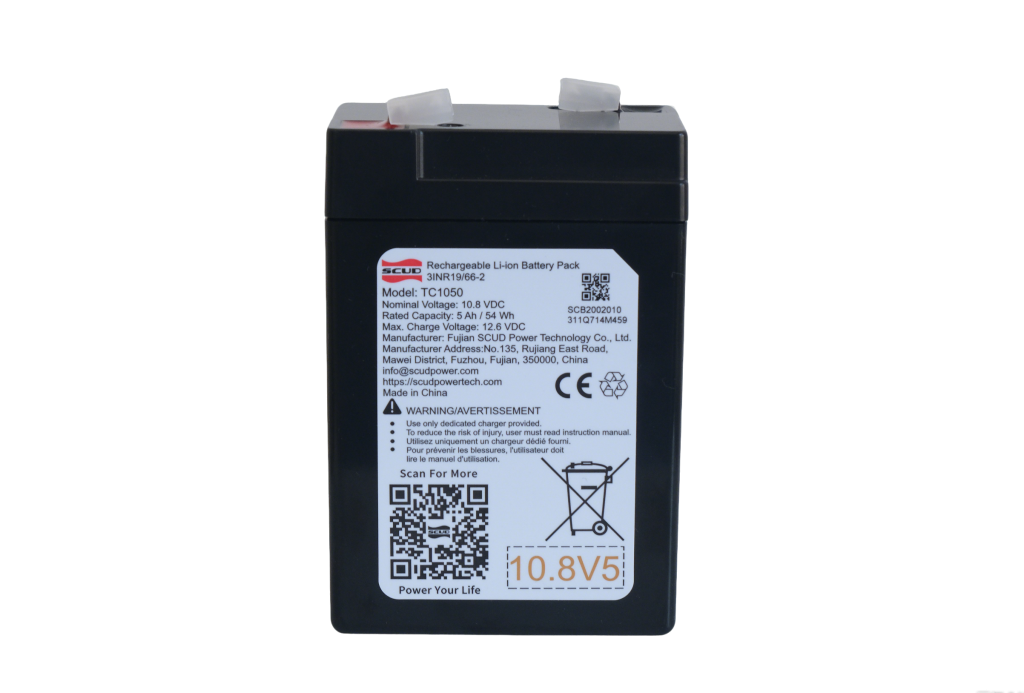

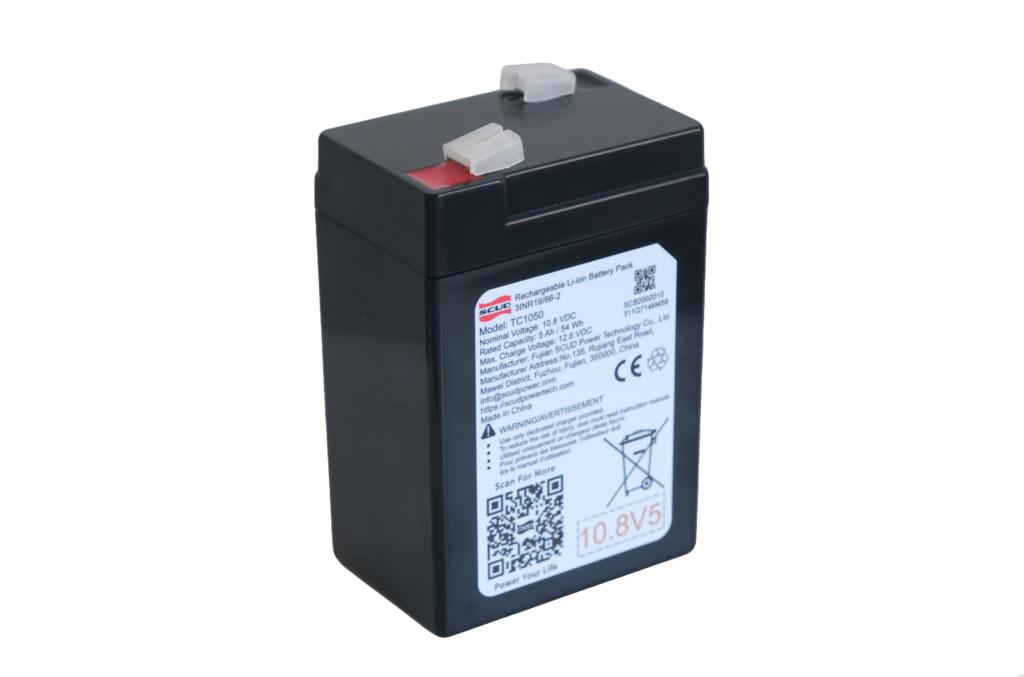

TC1050

Corresponding Lead Acid 12V7Ah

Voltage/Capacity(V/Ah)10.8/5
Energy(Wh)54
Dimension(mm)70*47*101
Weight(kg)0.41
Sme MaterialPlastic
Cell Configure(S/P)3S2P
Standard Discharge Current(A)1
Maximum Discharge Current(A)10
Standard Charge Current(A)1
Maximum Charge Current(A)3
Cell Type18650
IP LevelIP65
CertificationCB,UN38.3,UL2271
(EU)2023/1542

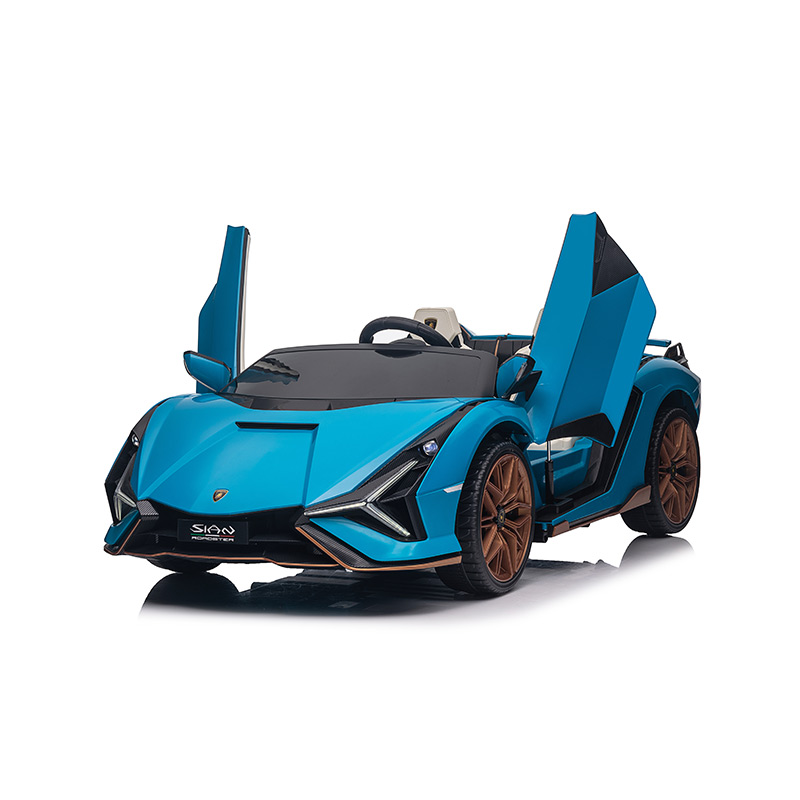

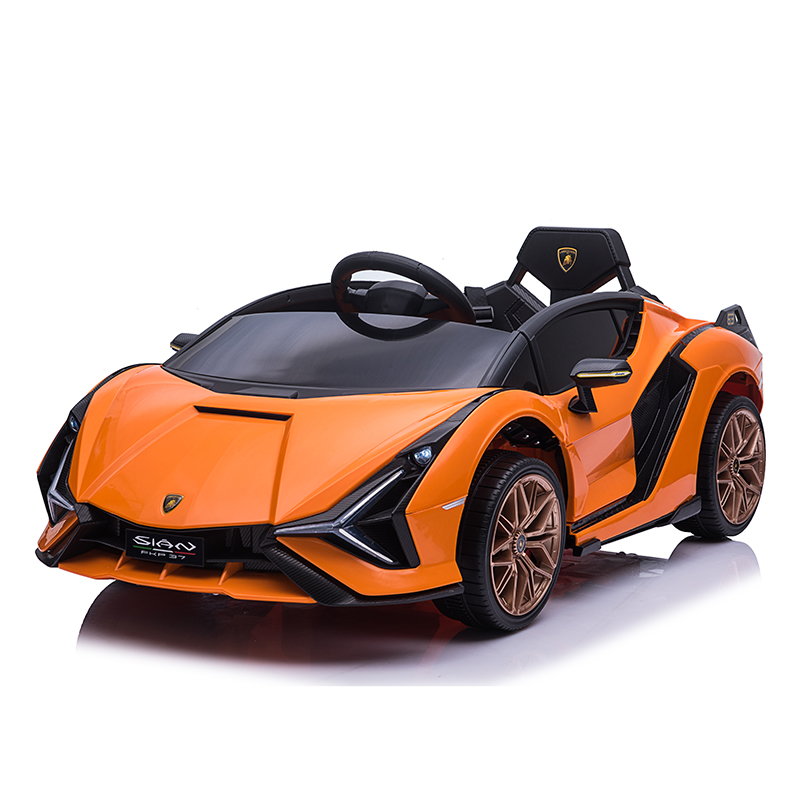

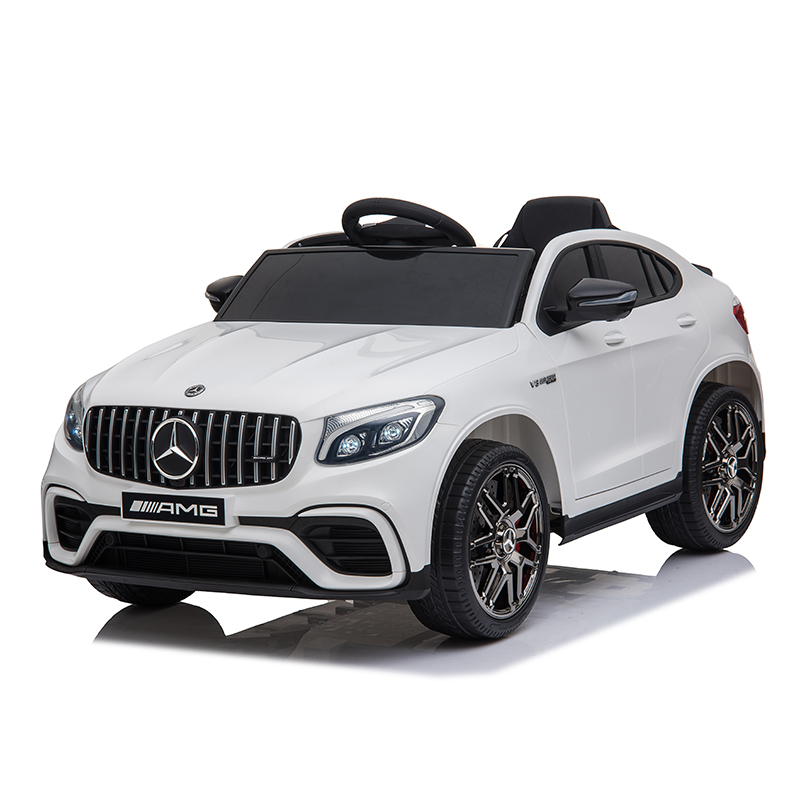

Battery-Electric toy car configuration

Overload Protector

13~15A(Only)

Motor Configuration

RS380*2/RS390*2/RS390*4/RS550*2

Application
